Thermal heat loads continue to rise across modern aerospace platforms, and packaging constraints rarely ease up. Multi-circuit fuel-cooled oil coolers offer a way to manage several demanding oil circuit loads without adding unnecessary bulk. These compact units allow you to rethink how heat is removed through an aircraft system and make better use of available fuel flow. When several subsystems depend on stable temperatures, how do you maintain performance without expanding the installation envelope?
How Multi Circuit FCOCs Operate
A fuel-cooled oil cooler (FCOC) is a liquid-to-liquid heat exchanger that typically channels hot engine oil through one pathway and cool jet fuel through another in counterflow, cross-counterflow or parallel flow. As the oil’s heat is transferred to the fuel, the oil is cooled and returned to the engine, while the now-warmer fuel proceeds to the combustor (helping avert fuel freezing at high altitude). In a multi-circuit FCOC, this principle is extended to multiple oil circuts where each flow through isolated passages within a single cooler core. A common fuel stream (or shared fuel header) runs across all these oil circuits, absorbing heat from each loop in one combined unit. Essentially, the multi-circuit cooler behaves like several parallel and/or series path fuel-oil heat exchangers packaged together.
HT’s Solutions
Hughes-Treitler’s multi-circuit FCOCs are typically built with the same high-performance plate-fin or fin-and-tube core construction as single-circuit coolers. Thin corrugated aluminum fins and plates are vacuum-brazed to form separate flow channels for each fluid. Each oil circuit is independently engineered for its required flow rate and pressure, while the overall assembly safely handles high pressures – on the order of up to ~900 psi in each loop – as expected in aircraft lubrication and hydraulic systems. Internal barriers and seals maintain complete separation between all the fluid paths. This prevents any cross-contamination between the multiple oil streams or between oil and fuel, even under high differential pressures. Hughes-Treitler incorporates design features like anti-leakage layers to ensure that each circuit remains isolated, delivering the same level of safety and reliability as conventional single-loop coolers.
Despite the increased complexity internally, thermal performance is not compromised. Each circuit in a multi-cooler can achieve heat transfer efficiency comparable to a standalone cooler of similar size. In fact, by sharing a common fuel sink, multi-circuit FCOCs can handle very large, combined heat loads in a single package – effectively raising the thermal density (BTUs of heat rejected per volume of unit) compared to separate units.

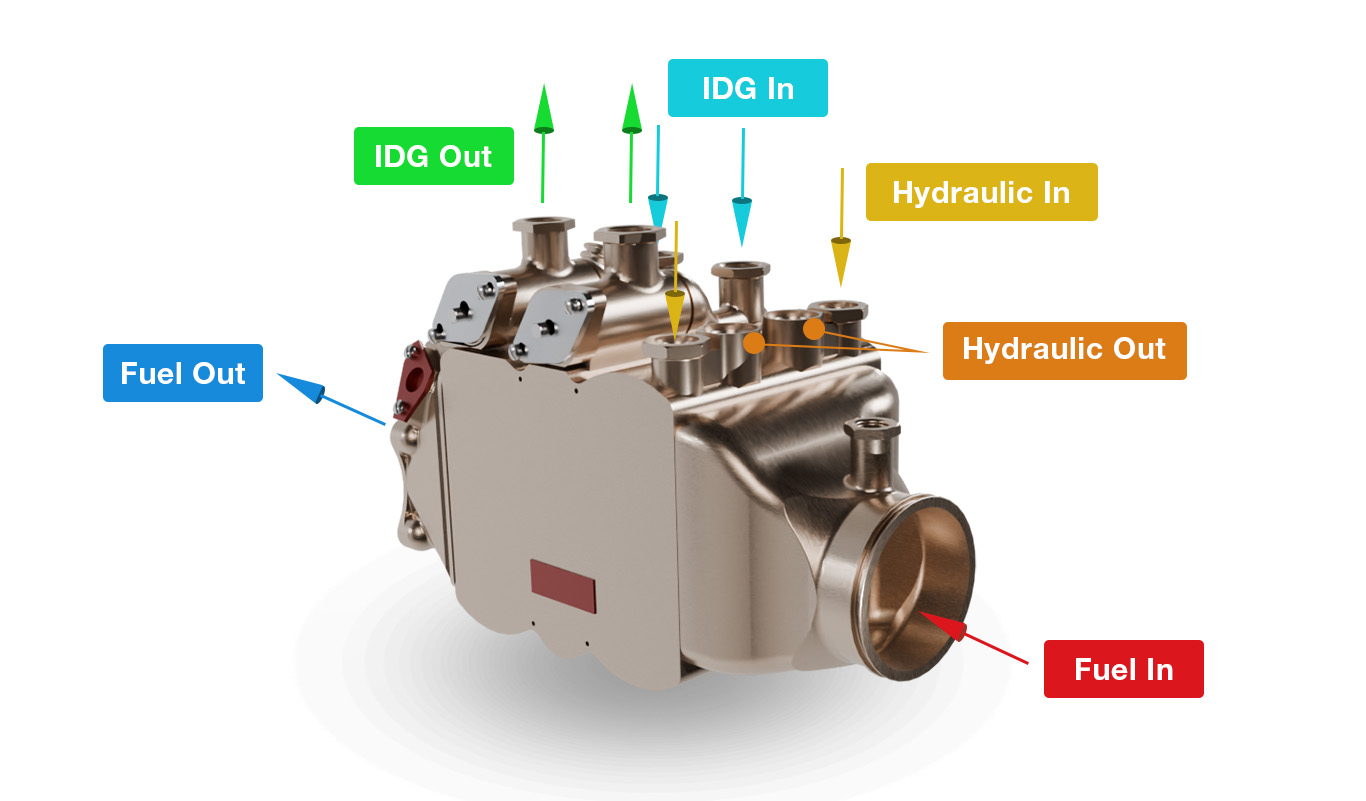

For example, one Hughes-Treitler design uses a single fuel flow to cool four separate oil circuits (two hydraulic loops plus two gearbox/drive oil loops) within one cooler; this single unit weighs only ~11.4 lb and is capable of removing over 100,000 BTU/hr of heat in total. Such designs often include integral thermal bypass valves as well, allowing oil to bypass the cooling core during cold start conditions to prevent over-cooling or excessive pressure drop.
Applications Across Aerospace Platforms
These coolers are used on advanced military aircraft where several independent oil systems operate in tight spaces. Platforms with dense engine bays and limited ducting benefit from a single cooling assembly that handles several demanding circuits. When weight restrictions and temperature stability both matter, a multi circuit arrangement helps streamline integration.
Multi-circuit FCOCs can be found in high-performance fighter aircraft and trainer aircraft where multiple oil-cooled subsystems must be managed within a confined space. For example, a modern fighter jet might have an engine oil loop, an Integrated Drive Generator (IDG) oil loop, and dual hydraulic system loops – all generating heat. Rather than using four separate coolers, a single multi-circuit FCOC can be designed to cool all of them at once. This has clear advantages in a fighter’s densely packed engine bay or fuselage.
Hughes-Treitler has built its reputation by supporting some of the most widely deployed U.S. fighter platforms. Our experience spans multi circuit FCOCs that serve everything from long standing single engine aircraft to advanced stealth programs. This background reflects the durability of our thermal components and the custom engineering that goes into each unit. If you want to explore how these systems can be tailored for your platform, reach out to speak with one of our experts.
