Custom Surface Air-Cooled Oil Coolers for Demanding Engine Applications
At AMETEK Hughes-Treitler, we specialize in designing and manufacturing custom Surface Air-Cooled Oil Coolers (SACOCs) for a wide range of engine platforms, including commercial jets, military aircraft, and UAVs.

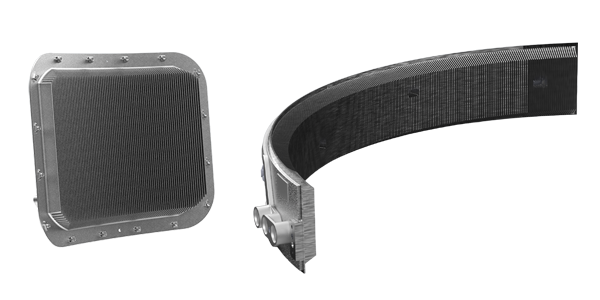

Our SACOCs are built with lightweight aluminum plate-fin construction and are engineered to fit seamlessly within engine cowlings and ducts. This design maximizes surface area and airflow, delivering efficient cooling in even the most compact and complex environments.
From small business jets to large commercial engines, our coolers wrap around the engine’s circumference to provide reliable thermal management when space and performance matter most.
Optimized for High Performance
Our Surface Air-Cooled Oil Coolers are built to perform in the most demanding environments where thermal efficiency, lightweight design, vibration resistance, and pressure durability are critical. We prioritize reliability and decongealing performance to ensure continuous, long-term operation of high-performance engines without interruption.
| Broad Range of Specifications (Typical Range) |
| Weight |
Typically from 8 lbs. (3.6 kg) to 12 lbs. (5.4 kg) |
| Oil Cooled |
Compatible with oils such as MIL-L-23699 |
| Oil Proof Pressure |
Up to 300 psig |
| Oil Flow Rate |
Typically ranging from 6.0 gpm to 12.0 gpm (30-40 lpm) |
| Oil Inlet Temperature |
From 200°F (93°C) to 250°F (121°C) |
| Heat Rejection |
Ranging from 60,000 BTU/hr to 100,000 BTU/hr, depending on application |
| Construction |
Lightweight, high-strength Aluminum with finned surface design for optimal heat dissipation |

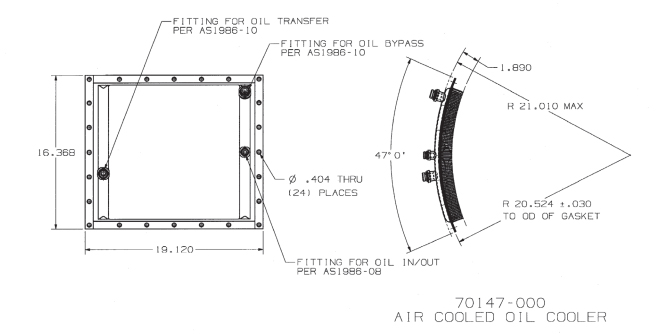

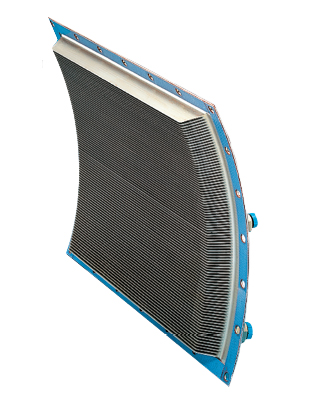

Customer Spotlight : Rolls-Royce AE3007 Engine Surface Cooler
Surface Air/Oil Cooler
Application: Turbofan Engine Oil Cooler
Part Number: 70147-000
Function: Cools an oil flow of 8.0 GPM at a rate of 1380 BTU/minute
Features: Cools by engine fan airflow over external finned surface
Platforms
Rolls-Royce AE3007 Engine used in:
• Embraer ERJ-135, 140, 145
• Northrop Grumman Global Hawk
• Cessna Citation
Specifications
Weight: 9.75 lbs. (4.42 kg)
Oil Cooled: MIL-L-23699
Oil Proof Pressure: 300 psig
Performance
Oil Flow: 8.0 gpm (30.28 lpm)
Oil Temp: 240°F (116°C) Inlet
DP: 12 psi
Heat Rejection: 82,800 BTU/hr.
Construction: Aluminum
