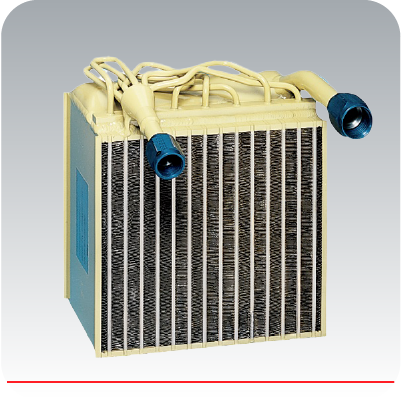

AMETEK Hughes-Treitler specializes in a wide range of custom-designed Aluminum plate-fin Evaporators and Condensers for Environmental Control Systems (ECS) in Rotary, POD, Airframe, and Military Vehicles. These units are engineered to meet the rigorous demands of aerospace and defense applications, providing efficient heat exchange solutions in high-performance environments.
Optimized for Performance and Durability
Our ECS coolers are built for applications where thermal performance, weight reduction, vibration resistance, and high-pressure capabilities are critical. These heat exchangers ensure optimal thermal management in compact, high-performance systems, while maintaining reliability under demanding conditions. From small rotary-wing aircraft to large military vehicles, our solutions are tailored to meet the exact specifications required by each platform.
Applications:
- Rotary-Wing Aircraft
- POD Systems
- Airframe Cooling
- Military Ground Vehicles
- UAV Systems
- Turbofan Engines
Broad Range of Specifications (Typical Ranges):
- Weight: Typically ranges from 5 lbs. to 12 lbs. (2.2 kg to 5.4 kg)
- Material: High-strength Aluminum with plate-fin construction for improved heat dissipation
- Pressure Handling: Units designed to withstand pressures of up to 300 psig
- Thermal Performance: Handles cooling requirements from 50,000 BTU/hr to 100,000 BTU/hr
- Operating Temperatures: From -65°F (-54°C) to 350°F (177°C)
- Construction: Vacuum-brazed aluminum for lightweight yet durable construction
- Cooling Fluids: Designed for use with fluids like MIL-L-23699, as well as other ECS-specific fluids
Custom Solutions for Unique Requirements
All of our evaporators and condensers are custom-engineered to meet the unique specifications of each project. Whether your system demands specific pressure capabilities, unique thermal loads, or the need to operate in extreme vibration and environmental conditions, Hughes-Treitler delivers solutions designed to perform reliably over long service lives.
Key Features:
- High thermal efficiency: Maximizing heat rejection while minimizing size and weight
- Customizable designs: Tailored to the specific needs of rotary, pod, and airframe systems
- Advanced vibration resistance: Built to withstand high-vibration environments commonly found in military and aerospace platforms
- Wide operational temperature ranges: Effective performance from sub-zero to high-heat environments
Innovative Heat Exchange Solutions
Our Evaporators and Condensers provide precise temperature control and enhanced reliability for a wide range of aircraft systems, reducing the risk of overheating and ensuring system longevity. We work closely with our customers to design and manufacture heat exchangers that meet specific operational needs while delivering maximum performance under the toughest conditions.
Explore Our Custom Solutions
Ready to improve your system’s cooling performance
with our state-of-the-art Evaporators and Condensers?
Contact our team of engineers today to design a solution
tailored to your specific requirements.
|

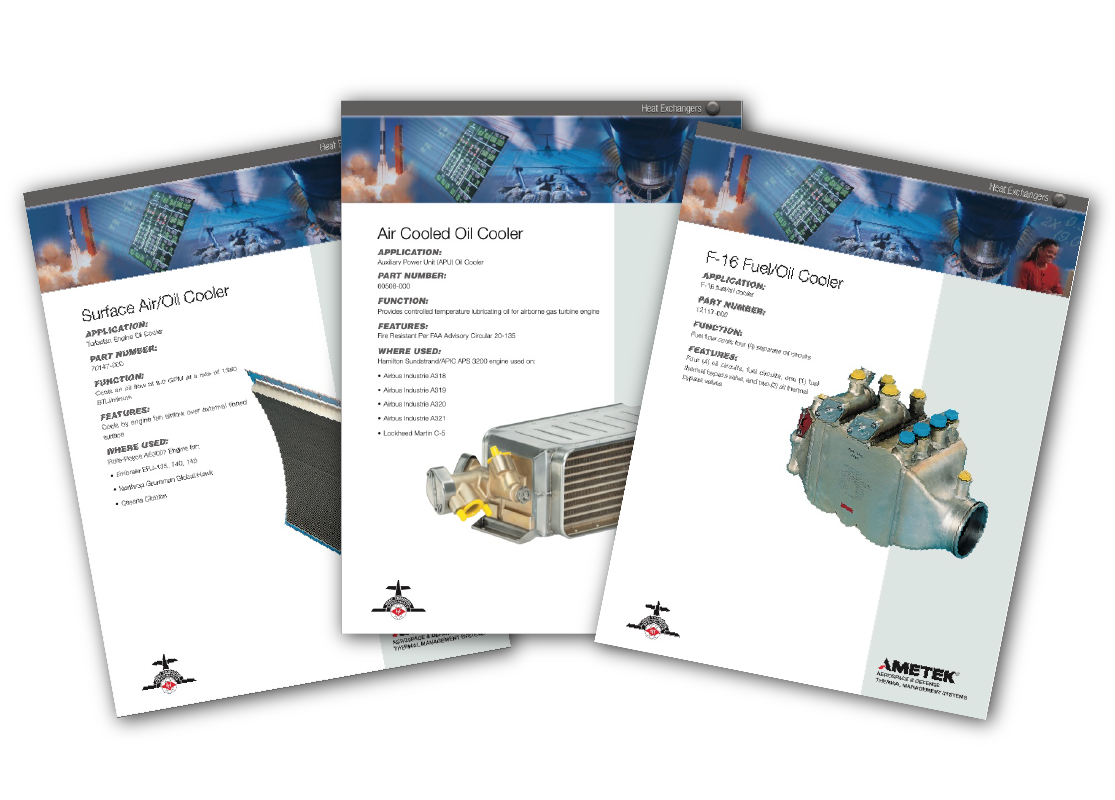

Download Datasheet
